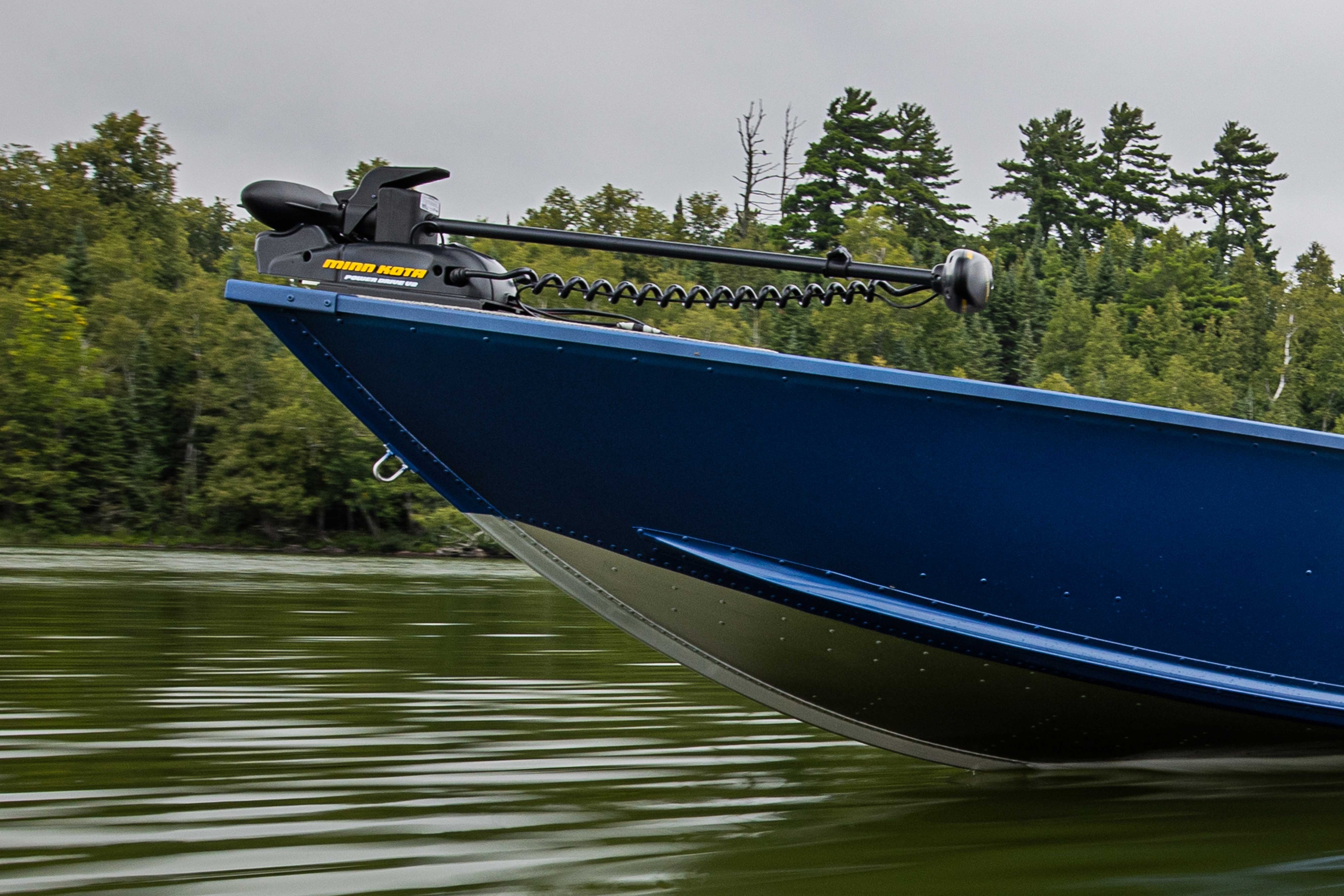

- 2XB Bow

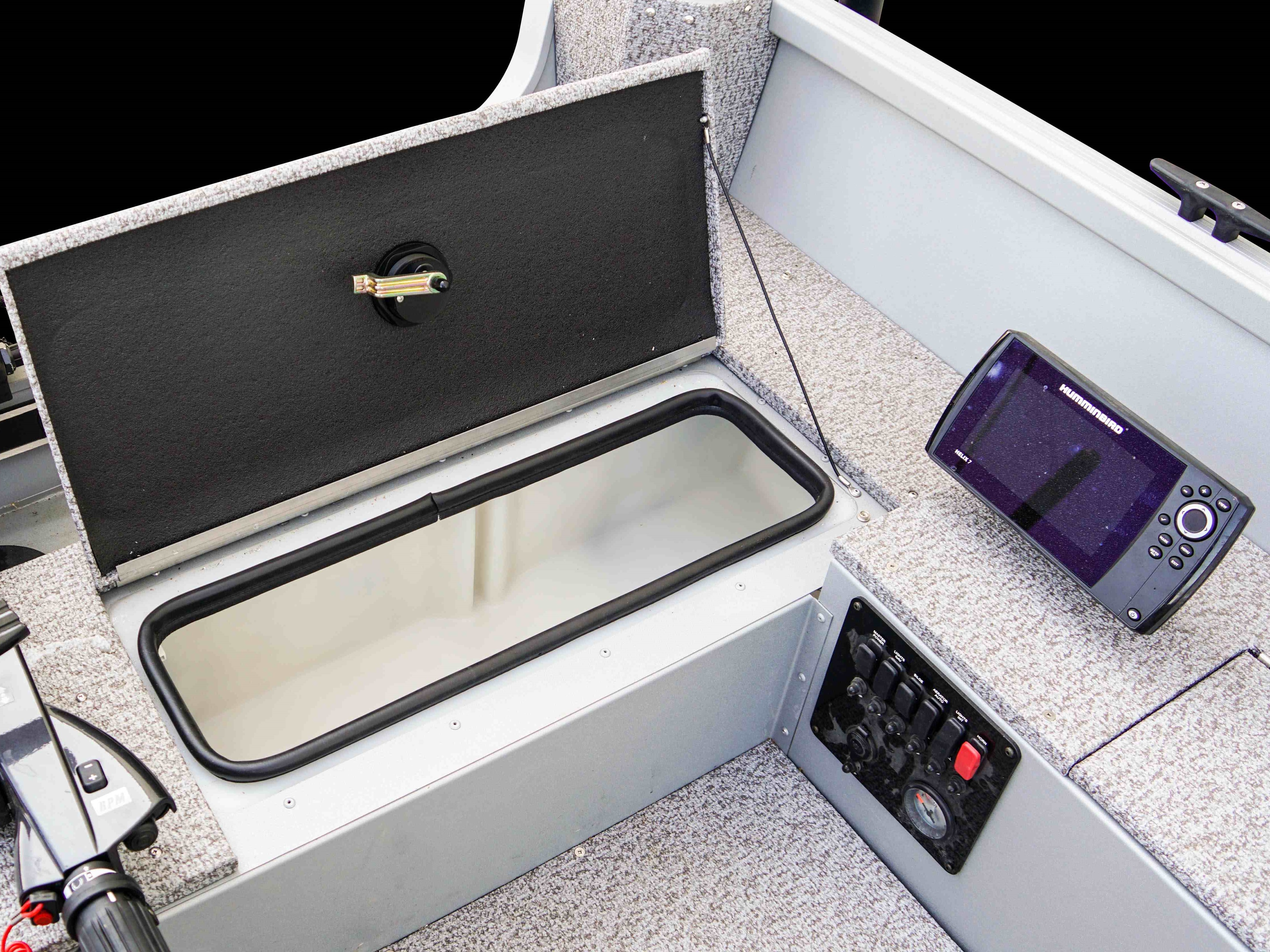

- Aerated Livewell

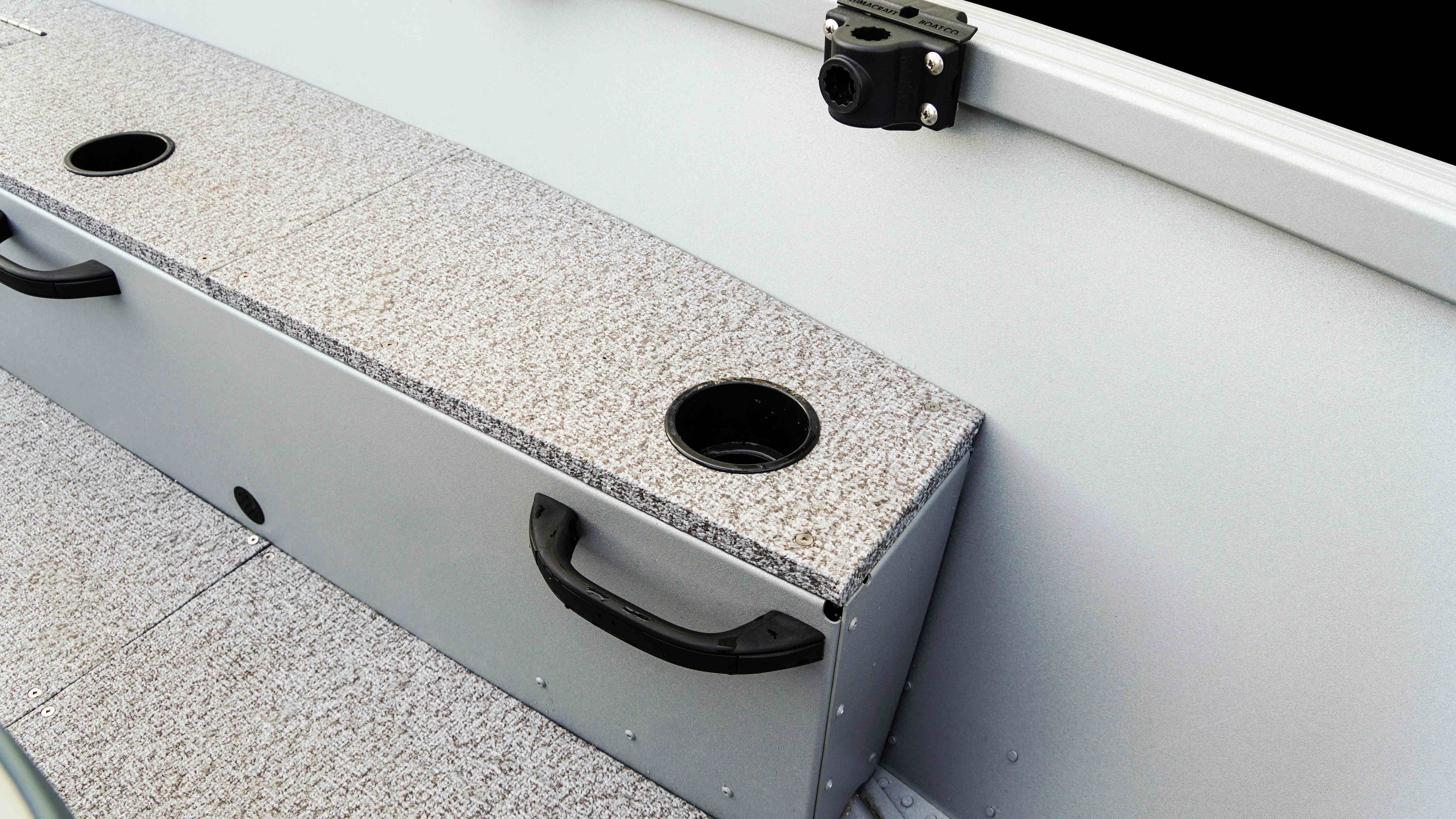

- Easy Clean Interior
- Deluxe Seats
- Lockable Rod Storage
EXPLORE HELM CONFIGURATIONS & SPECIFICATIONS
-
2022Summit
The Summit is built with one idea in mind: simple is best. Available in 16-foot and 18-foot easy-to-tow models, with versatile open layouts and easy to clean interiors, these boats are the ideal entry point into the Alumacraft Boats family. Rugged and tough, they’re the perfect multi-use boat for weekend anglers looking to enjoy hunting and fishing.
-
Max HP
50 - 75 HP
-
Boat Lengths
16' 6" , 17' 10"
-
Boat Dry Weight
725 - 945 lbs
-
Hull Type
Deep V - Riveted 2XB Bow
-
Capacity
Up to 4 - 6 Persons
Colors Hull - No Paint
Accent - No Paint, Khaki, Black Crystal
Dimensions Fuel Capacity - 180: 17 gal. (64 L)
165: Portable
Weight - 180: 945 lbs (429 kg)
165: 725 lbs (329 kg)
Persons/Capacity - 180: 6 (1,400 lbs - 635 kg)
165: 4 (1,250 lbs - 567 kg)
Length Overall - 180: 17’ 10” (5.4 m)
165: 16’ 6” (5 m)
Max HP - 180: 75 HP
165: 50 HP
Beam - 180: 87” (2.2 m)
165: 76” (1.9 m)
Transom Width / Height - 180: 86”/20” (2.2 m/0.5 m)
165: 76”/20” (1.9 m/0.5 m)
Max. Depth - 180: 35” (0.9 m)
165: 36” (0.9 m)
Max. Hull Thickness - 180: 0.145” (3.7 mm)
165: 0.145” (3.7 mm)
Freeboard Thickness - 0.065” (1.7 mm)
Livewell Aft - 180: 18 gal. (68 L)
165: 13 gal. (49 L)
Instruments - 180: fuel, horn
165: -
Seats - 180: 3 deluxe
165: 2 Deluxe
StandardFeatures Standard Accessories - Driver's Seat Slider
Grab Handles
Aerated Livewells
AlumaTrac System
Cleats
Fire Extinguisher
Manual Bilge Pump
Trolling System - 12 Volt (Summit 165)
Lighting - Livewell Light (Summit 180)
Stowable Running Lights
Storage - Bow Platform Storage
Port Side Rod Storage 8'
Starboard Rod Storage (9'-180)
Starboard Side Storage (165)
OptionalFeatures Optional Features - Telescoping Ladder
Cover
Driver Air Ride Pedestal
Pro Casting Seat
Alumatrac Accessories
-
